PVC Corrugated Pipe Machines / Production Line For Size From 32mm Id Up 1600mm Od

Liên hệ với tôi để lấy mẫu miễn phí và phiếu giảm giá.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp hỗ trợ trực tuyến 24 giờ.
xTốc độ tối đa (m/phút) | 1,5-5m/phút | Tổng công suất (KW) | 200-1000KW |
---|---|---|---|
Chiều kính ống ((MM) | 32-1600mm | Cấu trúc Cortrator | Cấu trúc ngang Cát, kích thước sản xuất dễ dàng thay đổi |
Đầu ra HDPE | 40-1600kg/h | Hệ thống làm mát | Hoàn thành hệ thống làm mát bên trong. |
hình thành | Sự tạo chân không | chết đầu | Đồng phát vòng xoắn hai lớp |
Làm nổi bật | PVC Corrugated Pipe Production Line,1600mm PVC Corrugated Pipe Production Line,32mm id corrugated pipe extruder |

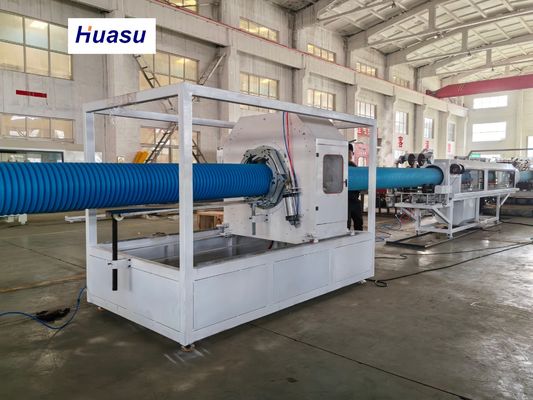

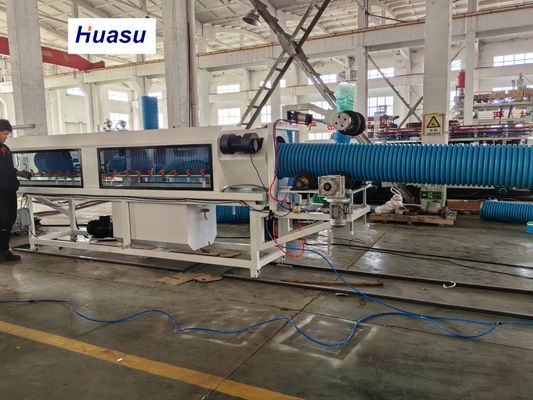

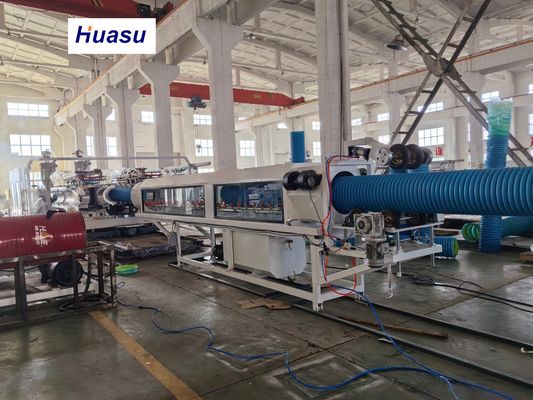

PVC Corrugated pipe machines/Production Line for size from 32mm i.d. up 1600mm o.d.
Product Description:
The corrugated pipeline represents the 3rd generation of enhanced products developed by Shandong HUASU. Compared to its predecessor, the extruder output and pipe production speed have been significantly boosted by 20-40%. Through online belling, the performance of the manufactured corrugated pipes is assured.
This innovative product incorporates the Siemens PLC system, ensuring high-quality performance and efficient operations. The improved design and advanced technology utilized in the production process guarantee enhanced productivity and reliability.
Features:

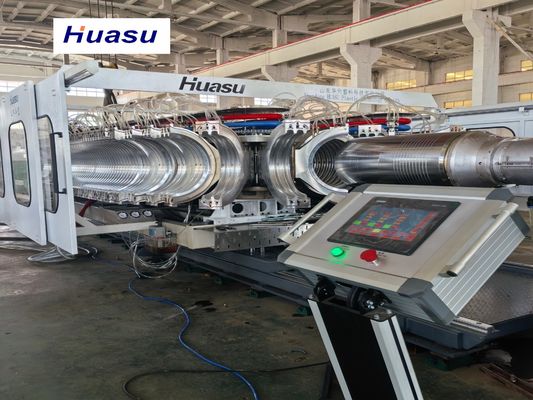

The newly designed closed molding machine is equipped with a special high-efficiency cooling system designed for forming aluminum modules. This system significantly enhances the cooling efficiency during the production of corrugated pipe products.
Additionally, a high-speed, high-output single-screw extrusion machine is utilized, accompanied by a professional design of the corrugated pipe extrusion mould to enable large-scale stable extrusion.
This system boasts good modularity, with the aluminum forming module constructed using LY12 high-quality alloy aviation aluminum material containing a copper content of at least 5%. Through precision pressure casting, the material ensures high density and is free of light pores, resisting deformation even after long-term use. Furthermore, various module waveform schemes can be customized based on user requirements.
Completing the setup is an automatic DWC cutter with computerized control, ensuring precise cutting positions, stable operation, and user-friendly operation.
Technical Parameters:
Pipe diameter(mm) | 32-1600mm |
Max speed (m/min) | 1.5-5m/min |
Pipe function | Cable Protect Cover, Medical Transfer Pipe, Gas Transfer, Water Transfer |
Cooling system | Complete Inner Cooling System |
HDPE output | 40-1600kg/h |
Forming | Vacuum Forming |
Structure corrugator | Horizontal Structure Corrugator, Easy Change Production Size |
Total power(kw) | 200-1000kw |
Die head | Double-layer Spiral Co-extrusion |
Applications:

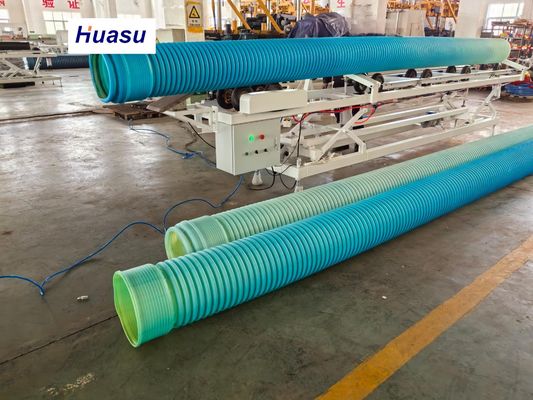

Corrugated pipe extrusion machine is capable of manufacturing corrugated pipes with outer diameters ranging from 32mm to 1600mm. These pipes find versatile applications such as cable protection covers and medical transfer pipes for small sizes, as well as for gas and water transfer in larger sizes.
